Pinching your finger in a door can be painful but certainly not life threatening. Pinch-point injuries involving industrial machinery are another story, one that rarely has a happy ending.

What is a pinch point?

A pinch point is “any point at which it is possible for a person or part of a person’s body to be caught between moving parts of a machine, or between the moving and stationary parts of a machine, or between material and any part of the machine,” according to OSHA. A pinch point can be located anywhere on a machine, including the point of operation. If any part of the worker’s body, typically hands or fingers, occupies that space during the pinching movement, there is a high probability of injury, such as fractures, amputations, contusions, lacerations or even death. Pinch-point hazard injuries can occur on a variety of different machine types, ranging from large hydraulic presses to small specialized machines, such as riveters and welders.

Hand safety regulation

There are several important U.S. hand protection standards designed to help employers keep workers’ hands safe at work: ANSI/ISEA 105-2011, American National Standard for Hand Protection Selection Criteria, and OSHA's 29 CFR 1910.138.

Safeguards to avoid pinch points

Physical Barriers: Eliminate the hazard by ensuring proper machine guarding is in place or keeping your hands away from pinch point hand injury and prevention altogether.

Awareness: Pay attention to where your hands are around any moving parts or any objects that have the potential to move. Do not place your hands where you cannot see them.

Personal Protective Equipment (PPE): Make sure you are always wearing your safety gear and inspect it before each use. Although the last line of defense against a pinch point injury, PPE (proper gloves, footwear) is a necessity to ensure others notice your position and your extremities are protected. Make sure clothing is properly fitted as to not get caught in machinery, moving parts, items that open/close, etc.

Properly block any equipment or parts where stored energy could be released. OSHA defines stored energy as hazardous energy sources including electrical, mechanical, hydraulic, pneumatic, chemical, thermal or other sources in machines and equipment that can be hazardous to workers. During the servicing and maintenance of machines and equipment, unexpected startup or release of stored energy could cause injury to employees. Lockout-tagout procedures need to be put into place to control hazardous energy and prevent unexpected start up.

Properly installed physical barriers or machine guards can help prevent workers from reaching into, through, over, under or around the pinch point.

Riveters & welders

We will be looking at “Good, Better, Best” approaches to safeguarding two machine types that present unavoidable pinch-point hazards – spot welders and pneumatic riveters. It is important to appreciate the magnitude of force between spot welding electrodes or riveting tips.

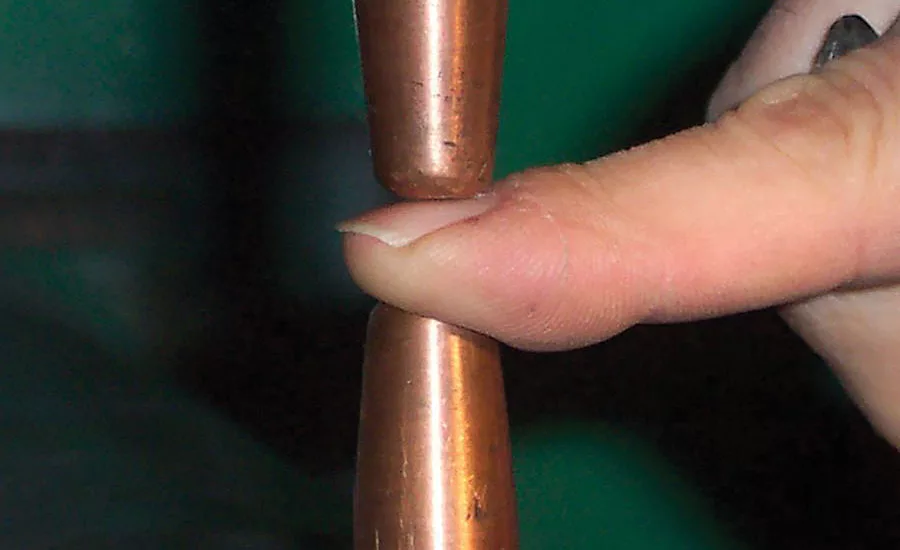

Spot welders require high forces between the moving electrodes ranging from a few hundred pounds to several thousand pounds. Because the force is concentrated on a small contact surface, the pounds per square foot can be extremely high.

For example, a fairly typical electrode of 800 pounds with an electrode that has a ¼ inch diameter contact face will deliver 16,306 pounds per square foot. This is easily enough to severely crush or amputate a finger.

Similarly, pneumatic riveting machines produce several thousand pounds of force concentrated on small-diameter mandrils. A typical rivet force of 2,000 pounds will deliver over 40,000 pounds per square inch.

Two-hand control and light curtains can be used to safeguard riveters and welders capable of stopping on the down-stroke (hazardous portion of the cycle, creates the pinch point).

Good: Drop-probe devices

Drop-probes provide economical, simple to understand and use, reliable protection for the operator. Drop-probe devices function by allowing a sensing probe to drop by gravity around the point-of-operation hazard of a riveter or welder prior to each intended machine cycle. The sensing probe cycle is initiated when the foot switch is pressed. If the sensing probe encounters the operator’s fingers and fails to drop past a preset position, the machine will not complete the cycle until the obstruction is cleared and the cycle is re-initiated.

Drop-probe devices can be used on machines that run in an automatic mode, but they only provide risk reduction for the first stroke.

The drawbacks of traditional drop-probe devices are:

• Stroke adjustment is limited to 1-5/16 inches.
• Uses a 50-percent duty rotary solenoid. It needs an equal amount of work time vs. rest time, so it’s not an ideal solution for high-volume welding or riveting applications.

Better: Adjustable stroke drop-probes

Identical in most ways to standard drop-probes, adjustable models offer an externally adjustable stroke, via a clamp collar, typically from 0 to 4.0 inches to accommodate any fixture, tooling, or changes in the profile of the workpieces.

Advantages of this device are:

• Longer stroke adjustment (4-½ inches versus 1-5/16 inches).
• Uses an air cylinder to move the drop probe, which is better suited for high-volume applications.

Best: Continuity monitoring

The most unique and highly effective guarding device measures electrical continuity between the two electrodes to verify they are actually touching the part to be welded, or in the case of a riveter, continuity between the upper and lower mandrils. If anything, such as the operator’s finger, blocks the movement of the electrode, the system will not detect continuity. In other words, it must detect metal between the copper tips or riveting mandrils rather than a finger.

When the foot pedal is closed, the electrodes are close under low force (50 pounds or less).

If continuity is detected within a customer-set maximum detect time, the air pressure rises to the full welding or riveting level and the process runs through completion.

If continuity is not detected within this maximum time, low pressure will be released and the electrode or mandril returns to the fully open position.

The continuity signal in a spot welder is picked up from wires on the welding transformer secondary pads, eliminating the need for wire connections at the electrodes. For riveters the sensing wires are connected to the frame of the rivet machine and the electrically-isolated lower tooling holder. In both cases the system will fail safe (lock out) if either of the pick-up wires is disconnected or if they are shorted together.

Conclusion

Pinch-point injuries are common and employers have an obligation to keep worker’s hands safe from pinch-point hazards. As outlined by ANSI B.11, task-based risk assessments are the critical first step in any safety evaluation and can identify hazards, such as pinch-point hazards. Risk-control factors, such as machine guarding, proper training and awareness of hand locations, and lockout tagout procedures, all help prevent pinch-point injuries.
